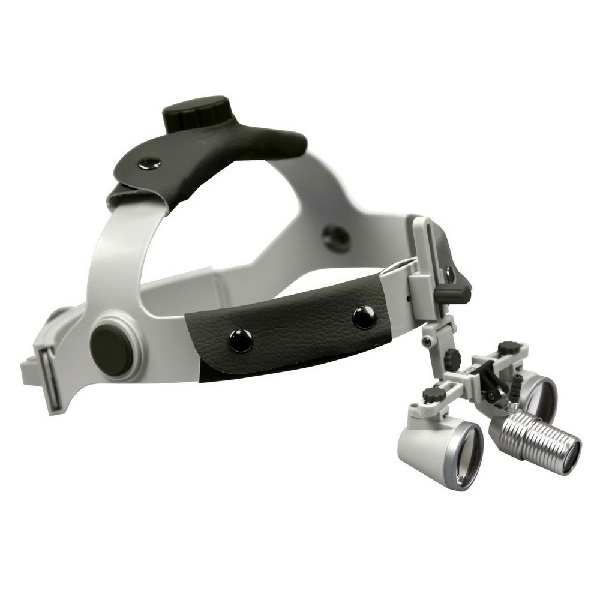

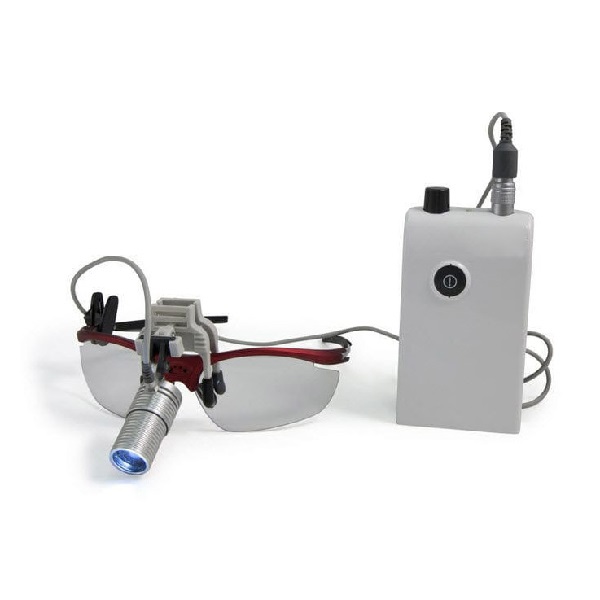

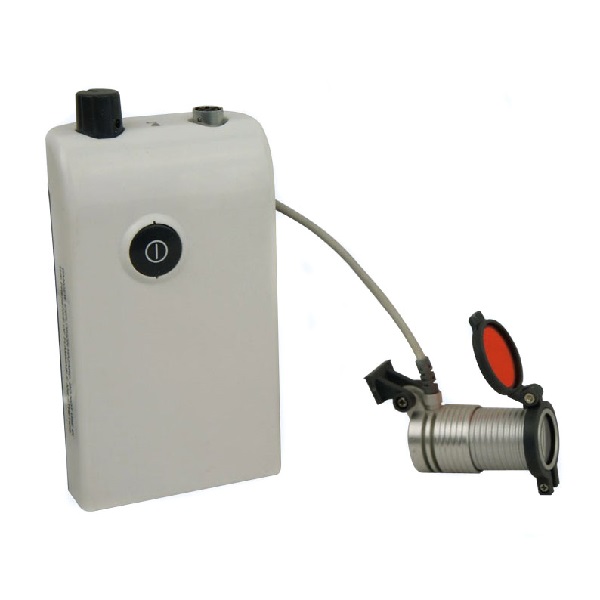

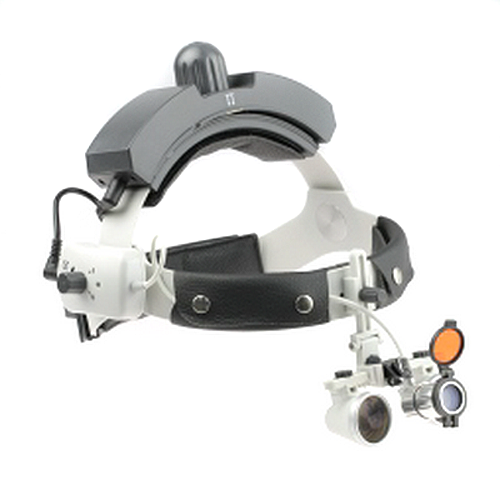

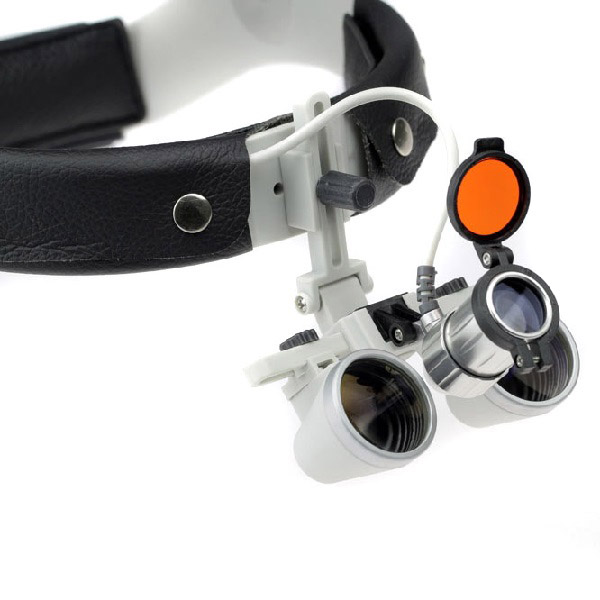

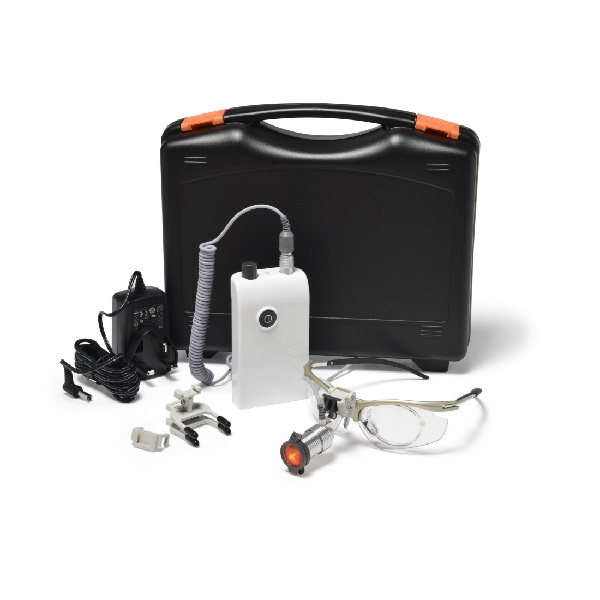

HL8300 Headlight

► Light Source: Our LED lamp has no heat of traditional Halogen headlight. With a color temperature of 5000 Kelvin, it supplies bright, white, shadow-free light allowing the doctor to see tissue characteristics without distortion.

► Homogenous illumination of the whole field of view.

► Enjoy the flexibility of operating the headlight using the rechargeable Lithium battery, it works without the direct power source. It is one of the most comfortable lightweight headlights and suitable for all kinds of surgery.

► The headlight could be used when it is charging.

► Low-battery indicatorlight.

► Smart design, convenient for mobile diagnosis.

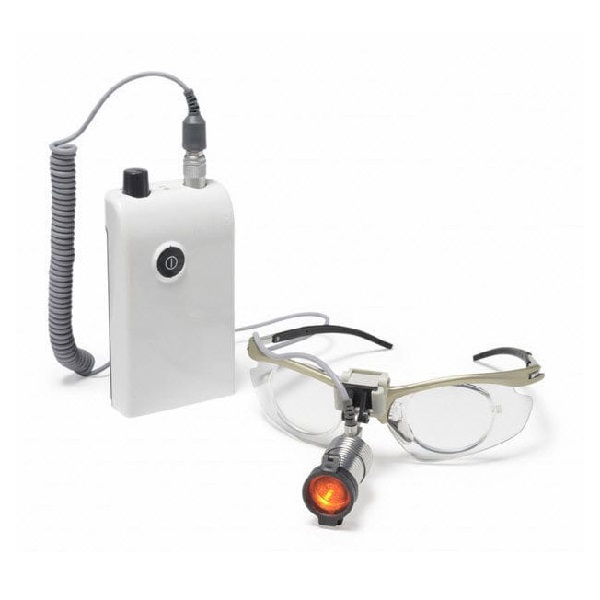

► Yellow filter reduces blue light, prevents premature curing of composite.

Description

1. Optical Specification
– Illumination at 200mm working distance:	>35000 Lx
2. Adjustable Range
– Direction of Illumination:	Vertical ±25°adjustable
3. Weight
– Head lamp:	21g
4. Electrical specifications
– Illumination Source:	Extremely bright light, 3W LED, life 20.000 hours continuous burn
– Battery:	7. 4V Lithium battery 2300mAh
– Battery Run-time:	> 9 hours
– Input voltage:	100-240VAC
– Maximum Power input:	14VA
– Electrical Safety standard:	IEC60601. 1, class II equipment

Order-Code	Description of products

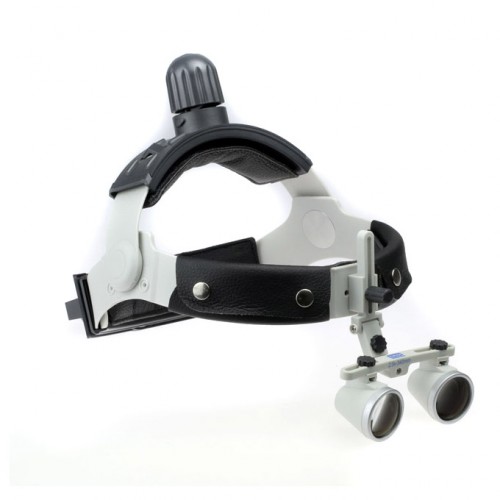

577-0010	HL8300 Headlight, with white 4400mAh battery, SLE/SLH loupes’ connector
577-0020	HL8300 Headlight, with white 4400mAh battery, SLT Classic loupes’ connector
577-0030	HL8300 Headlight, with white 4400mAh battery, SLT Sports Frame loupes’ connector

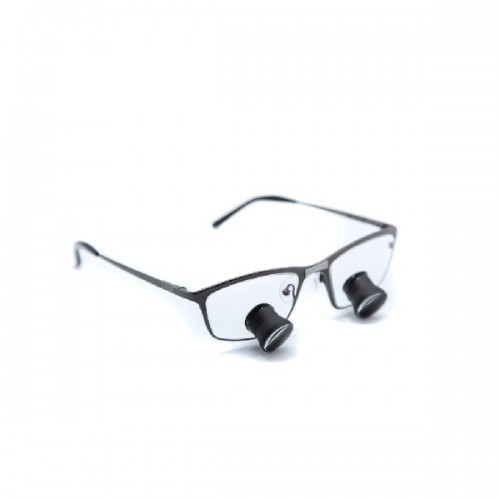

577-0040	HL8300 Headlight, with white 4400mAh battery, SLT Titanium Frame loupes’ connector

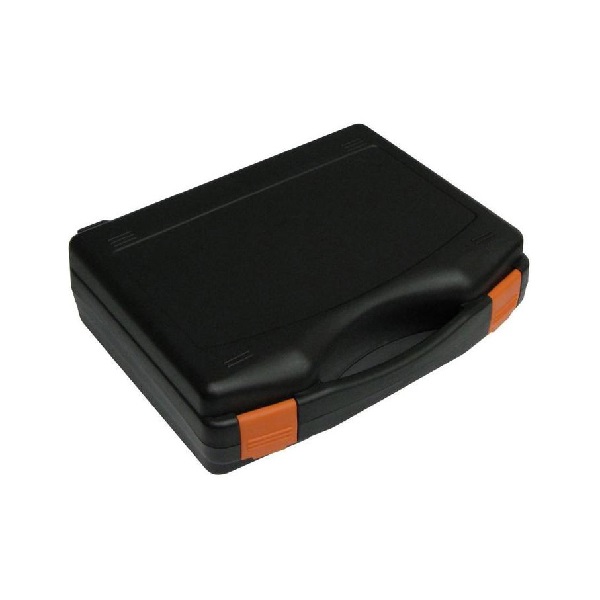

577-0060	HL8300 headlight, with white 4400mAh battery head-phone jack, longer spring cable, power adapter, metal case, Type R headband
576-9583	White 4400mAh battery for HL8300/HL8200 headlight, with headphone jack
