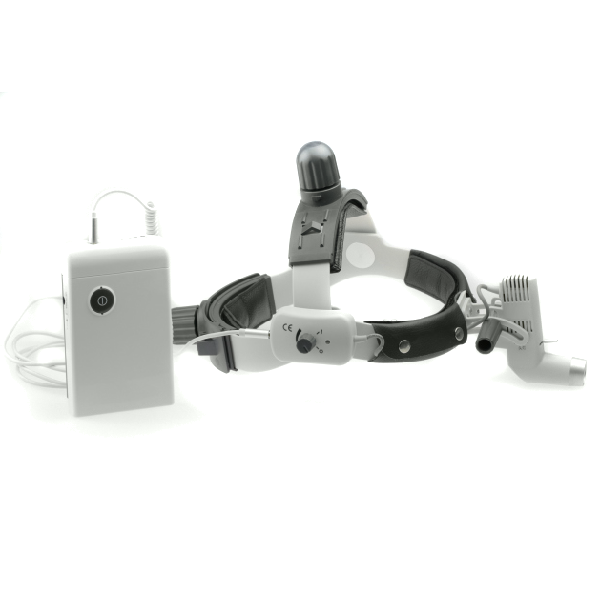

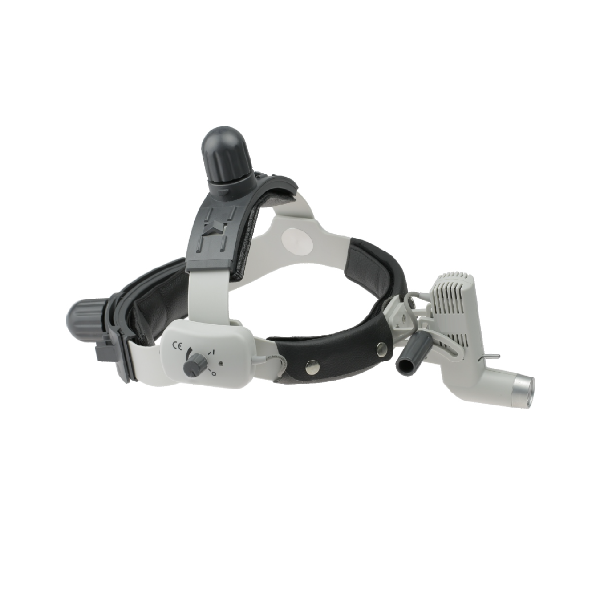

HL8000 Headlight

► Light Source: Our LED lamp has no heat of traditional Halogen headlight. With a color temperature of 5.500 Kelvin, it supplies bright, white, shadow-free light allowing the doctor to see tissue characteristics without distortion.

► Continuously adjustable spot size and brightness control.

► Enjoy the flexibility of operating the headlight using the rechargeable Lithium battery, it works without the direct power source. It is one of the most comfortable lightweight headlights and suitable for all kinds of surgery.

► The headlight could be used when it is charging.

► Battery Power indicator.

► Smart design, convenient for mobile diagnosis.

► Optional yellow filter reduces blue light, prevents premature curing of composite.

Description

1. Optical Specification
– Diameter of the light spot at a distance of 420mm:	20-80mm
– Illumination at 200mm working distance:	>50000 Lx
2. Adjustable Range
– Fluctuation distance:	12. 5mm
– Direction of Illumination:	Vertical ±25°adjustable
3. Weight
– Head lamp:	69g
4. Electrical specifications
– Illumination Source:	Extremely bright light, 5W LED, life 20.000 hours continuous burn
– Battery:	7. 4V Lithium battery 4600mAh
– Battery Run-time:	> 8 hours
– Input voltage:	100-240VAC
– Maximum Power input:	15VA
– Electrical Safety standard:	IEC60601. 1, class II equipment

Order information

Order-code	Description of products

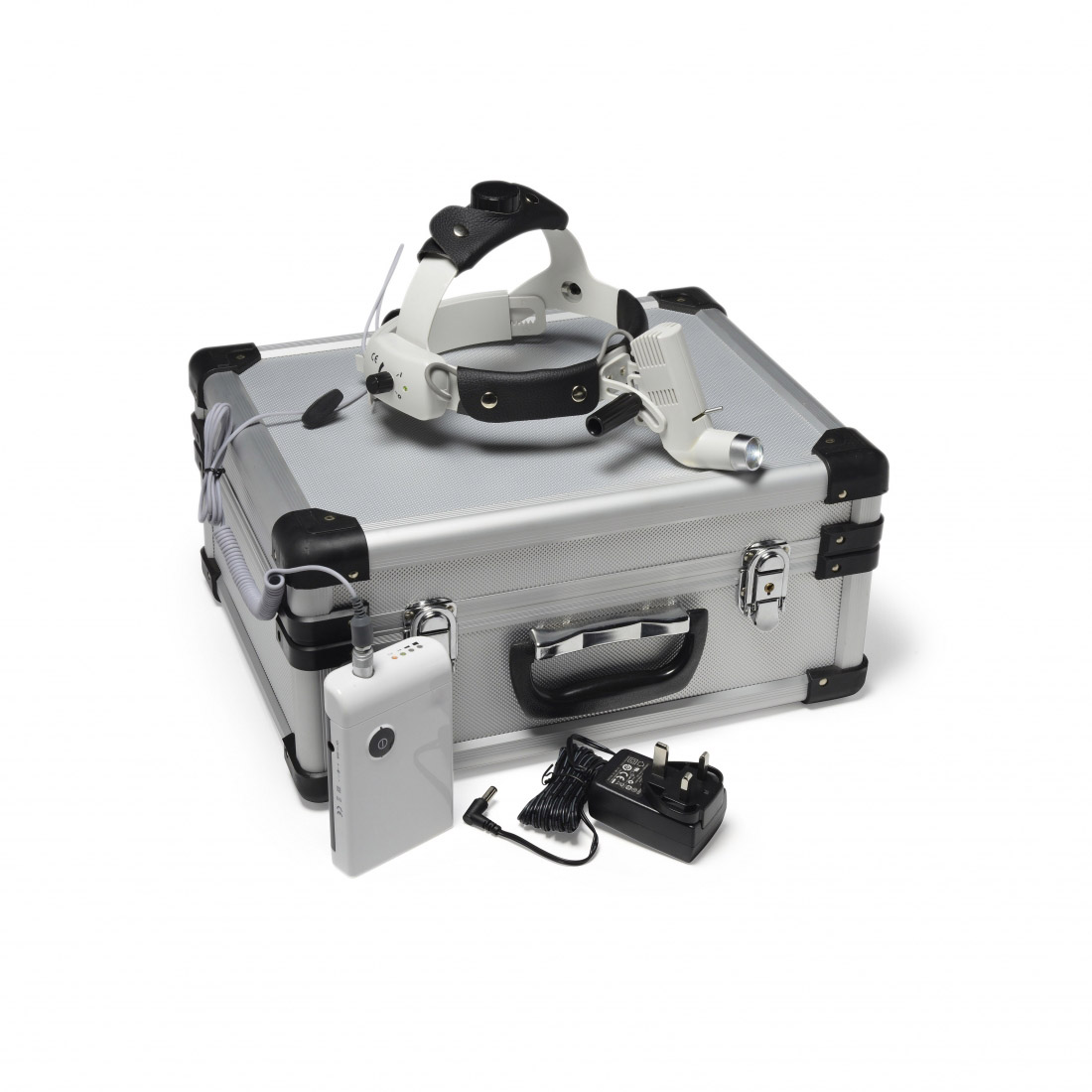

555-0010	HL8000 headlight, with white 4600mAh battery head-set socket, longerspring cable, poweradapter, metal case
552-9050	White Battery, 7. 4V 4600mAh for HL8000 headlight, headphonejack
556-9190	Wall Mout / Desk Chargerfor wireless headlight
980-123X	12V 2A Power adapter for charger, for wireless headlight
980-122X	12V1. 25A Power adapter for charger.forheadlight
552-9048	Spring cable with headphonejack, long
552-9083	Cable with headphonejack, Short, forwireless headlight
