Alpha G-20 colposcope

Request an offer for G-20 colposcope!

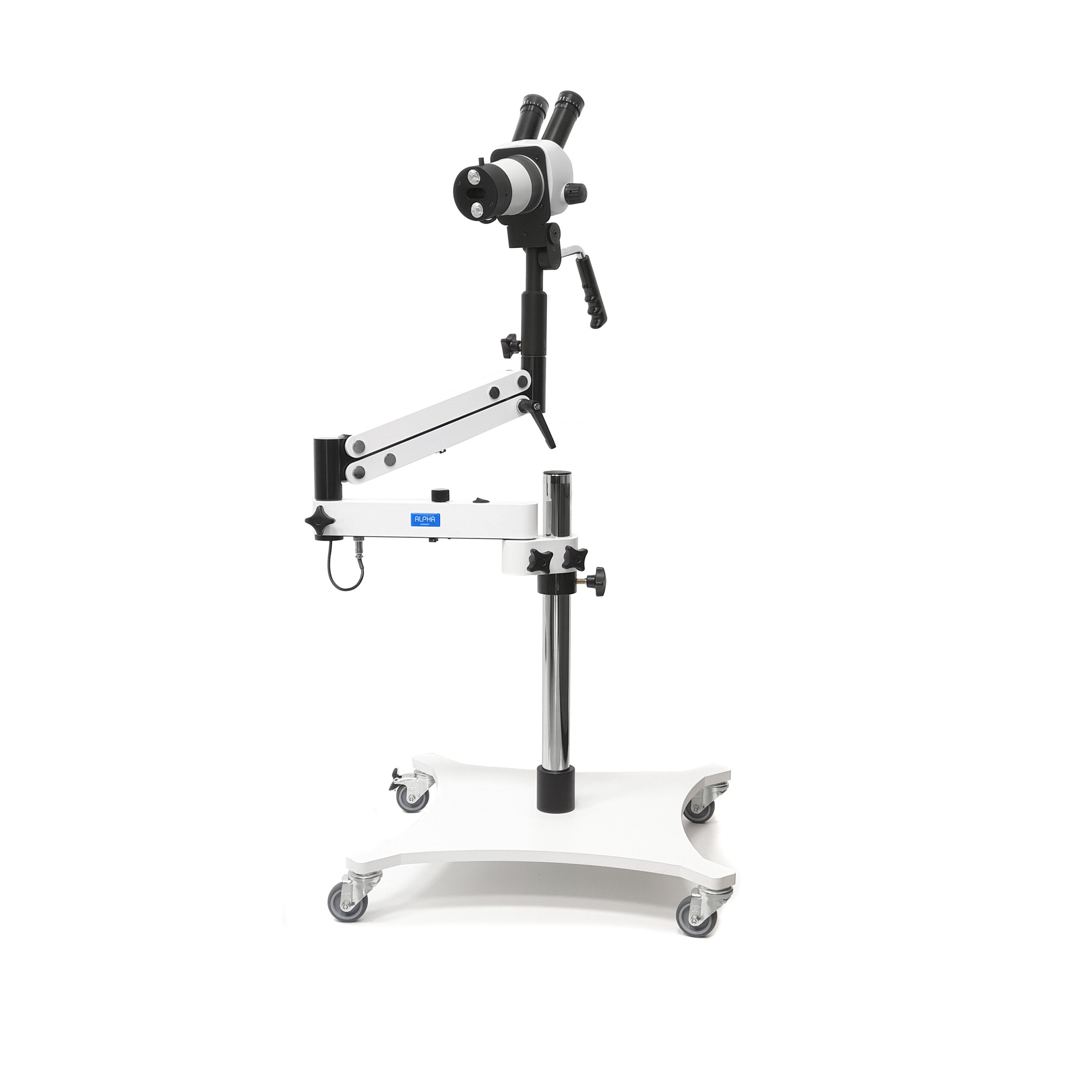

Trinocular zoom colposcope on a rolling stand

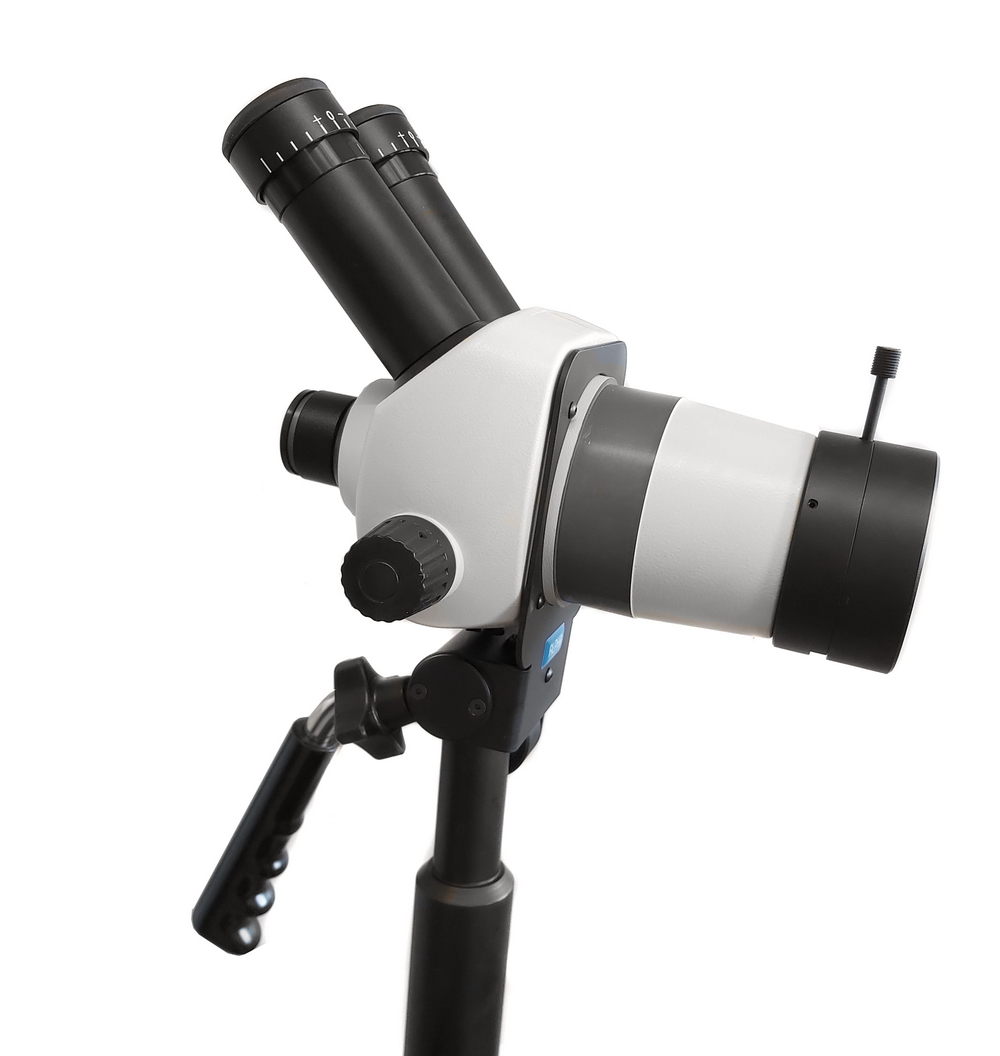

Head: could be turned, the height can be adjusted
The optical path is turned in 45°
Head rotation: 310 °
Pupillary distance: between 45-75 mm
Dioptria adjust: +/-5D
Working distance: 230 mm

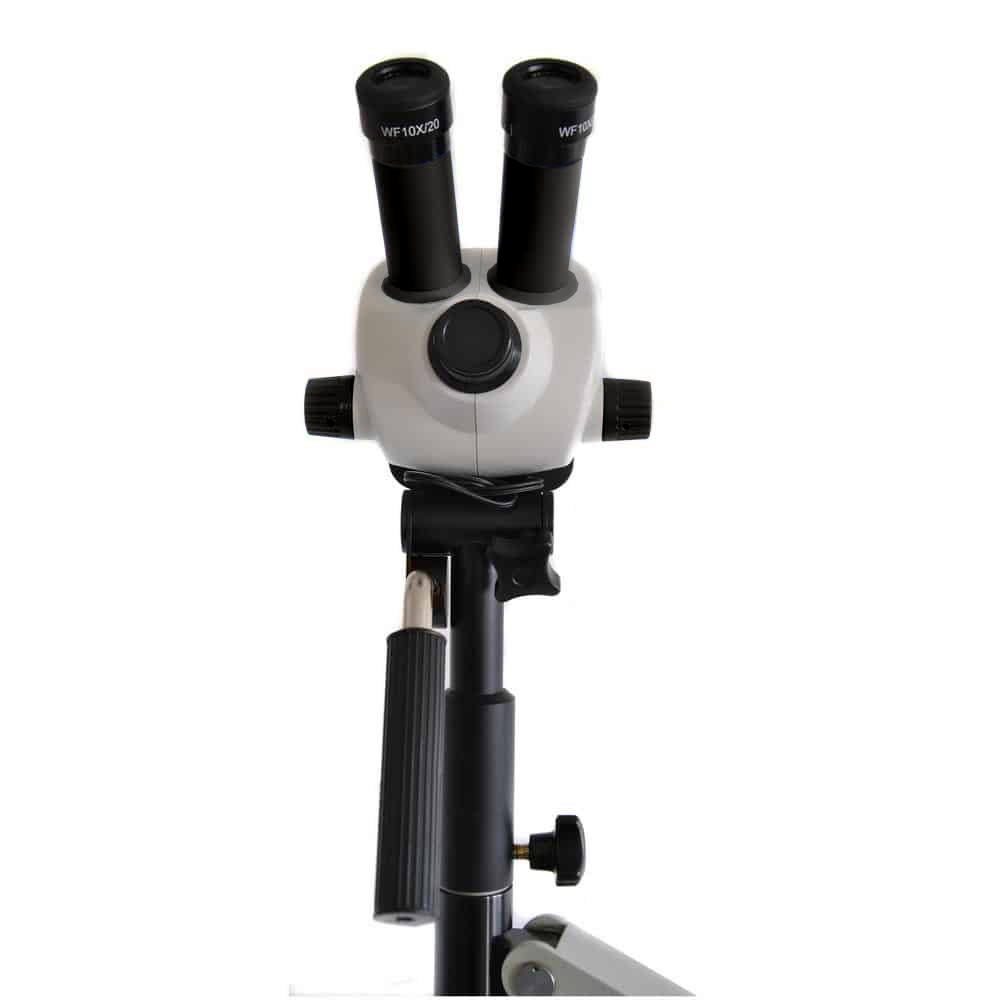

Eyepieces: WF10x/20 mm
Field of view: between 55-16 mm
Total magnification: 5x-22.5x

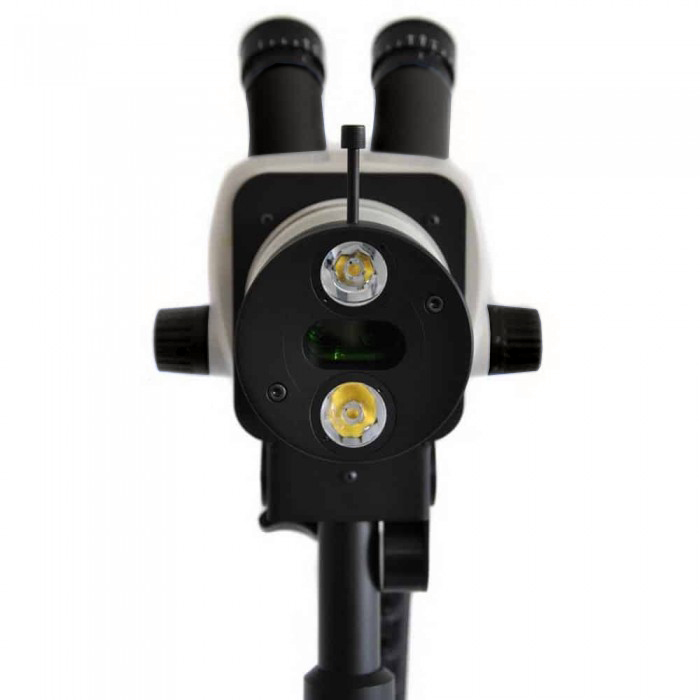

Built-in green filter can be switched on
Illumination: high brightness, adjustable 2 x 2W Dual Direct PowerLED (4000K, 100 000 lux)
Weight: 30kg

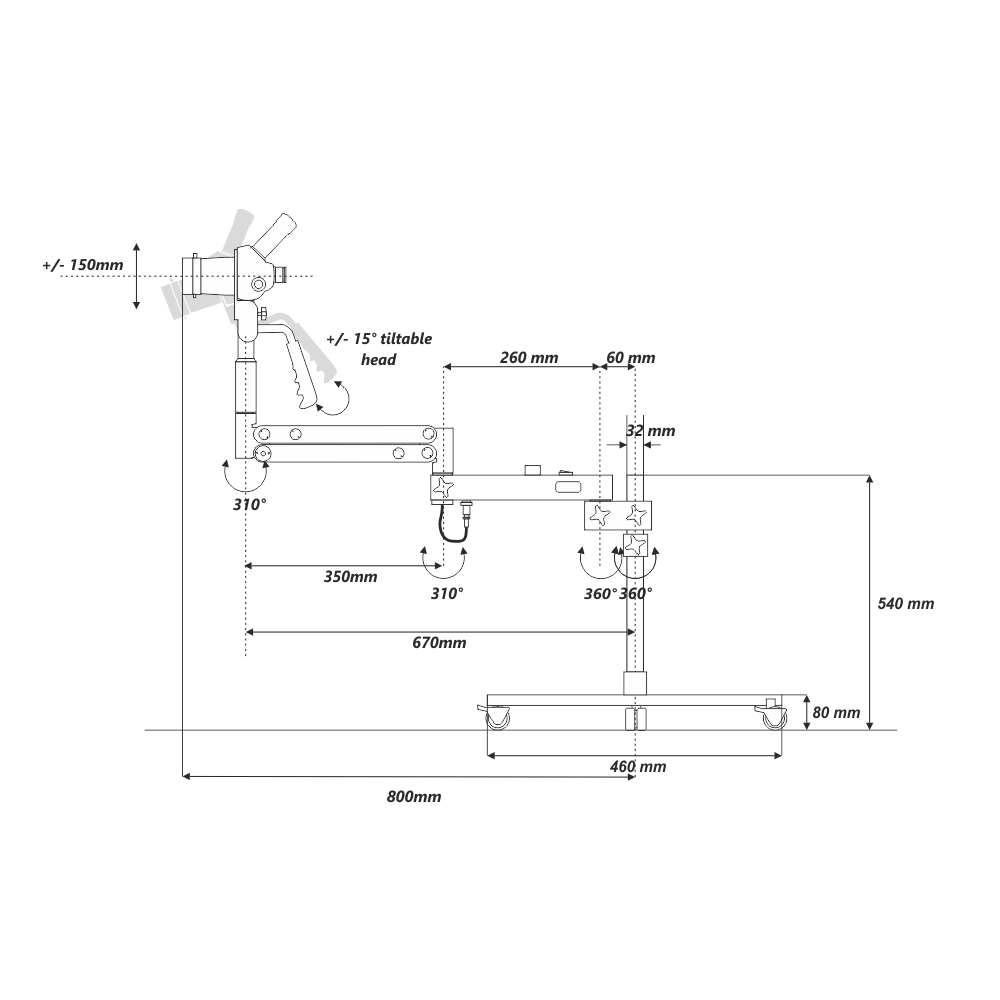

460 x 460 mm heavy base, with lockable rolls
The rotating point can be fixable

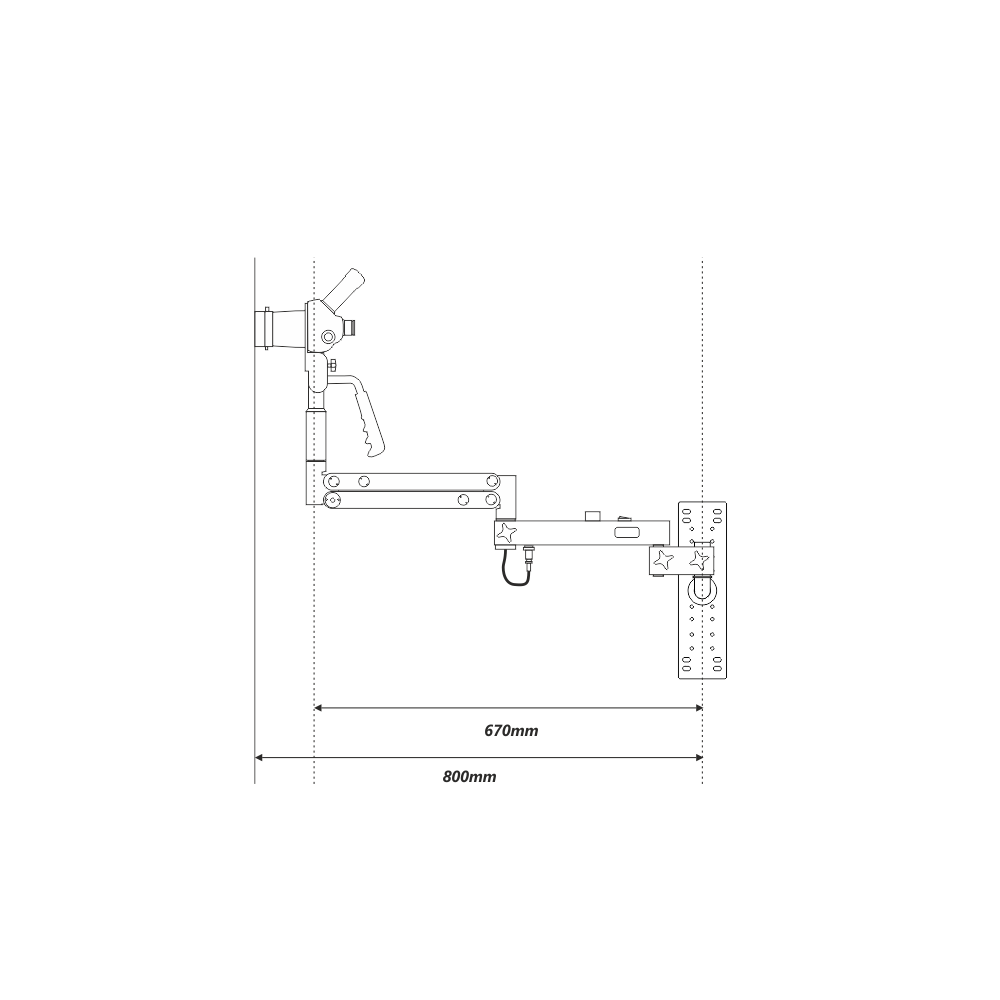

Max. overhang on the vertical rod: 800 mm
Vertical adjust range on the rod: 400 mm
Gas spring arm heigh adjust: +/-150mm
C-mount for analog and digital cameras
Accessories in the box: dust cover, power supply, user manual

Termékleírás

Order assembly in the case of a rolling base design

G-20 colposcope

Order code	Description	Picture
G20	Alpha G-20 colposcope
G20RB	Rolling base for G-20 colposcope
G20EXT200	Rod extender for G-20 colposcope

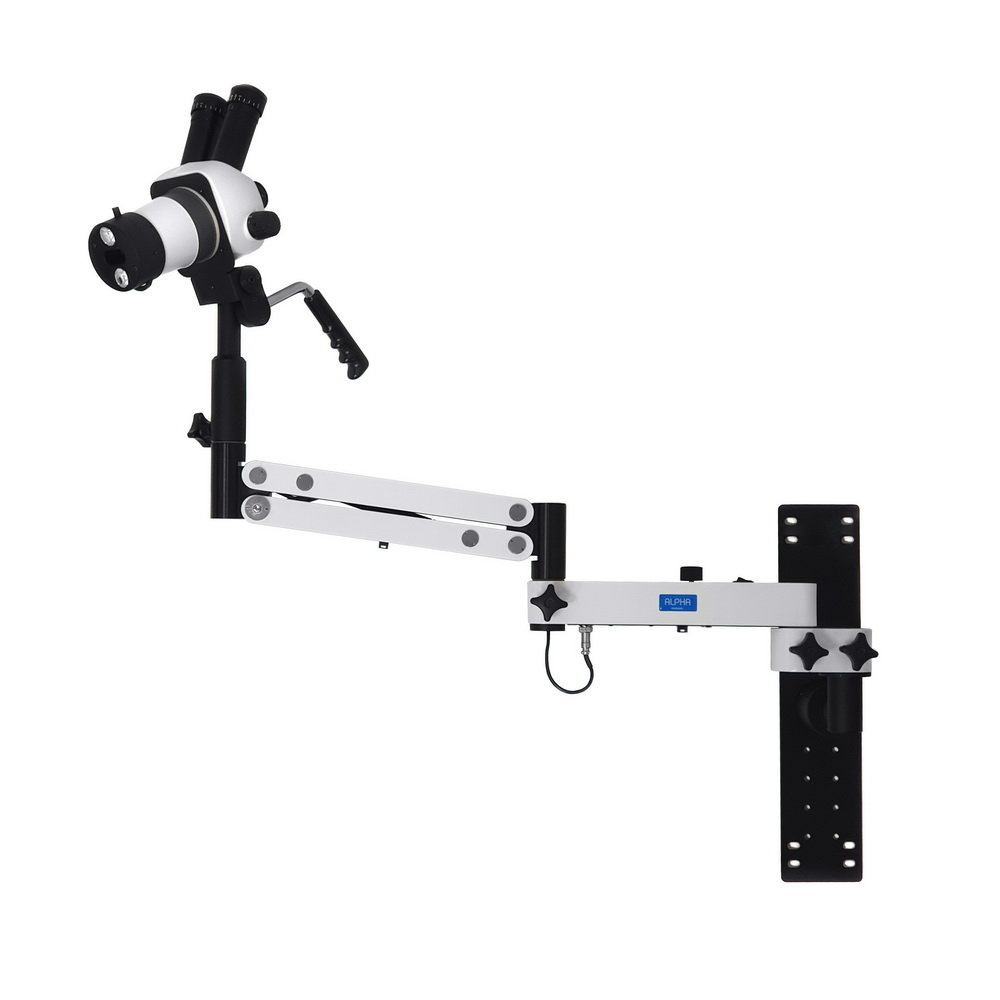

Order assembly in the case of a wall mount design

Order code	Description	Picture
G20	Alpha G-20 colposcope
G20UNI	Universal mounting kit for G-20 colposcope

Order assembly in the case of a examiner chair design

Order code	Description	Picture
G20	Alpha G-20 colposcope

The colposcope requires a different mounting kit for each type of chair! Below we list some specific bed types for which we make a mounting system. To place the order, you need the upper part of the colposcope (G20) and the mounting kit for the specific chair type! If required, based on our free* survey, we can also equip the colposcope for additional types!

*On the territory of Hungary

Rendelési kód	Description	Picture
G20SCH	G-20 mounting kit for Schmitz examiner chairs
G1020LE	G-20 mounting kit for Lemi adapters
G20RI	G-20 mounting kit for Ritter / PROMOTAL examiner chairs
G20REX	G-20 mounting kit for REXMÖBEL / Quirumed examiner chairs
