Alpha G-10 colposcope

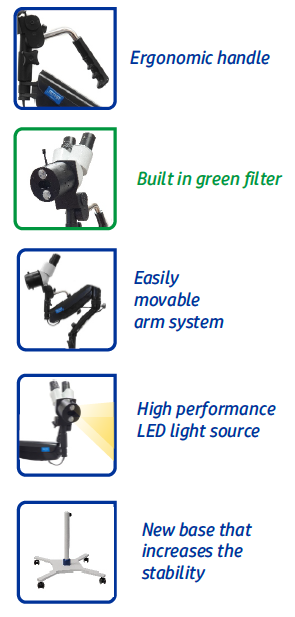

• Head: binocular, 45° inclined tubes
• The head can be tilted +/-15° using the handle
• Head rotatability: 310°
• Pupillary distance adjustment: 55-75 mm
• Diopter adjust on the left eyepieces: +/-5 D
• Working distance: 200 mm
• Eyepieces: WF10x/20 mm, with eye cups
• Filed of view: 22 mm
• Total magnification: 10x
• Switchable green filter
• Illumination: adjustable, high brightness Dual Direct LED, 4000K,
• Base floor area: 460 x 460 mm, with brakeable wheels
• The weight of the instrument: 12 Kg
• All rotating parts can be fixed with screws
• Maximum horizontal extension from the rod: 430 mm
• Vertical adjustment range of gas spring arm: +/-150 mm
• Accessories in the package: dust cover, DC 12V, wall power supply, power extension cable, user manual

Description

Order assembly in the case of a rolling base design

Order code	Description	Picture
G10	Alpha G-10 colposcope
G10RB	Rolling base for G-10 colposcope

Order assembly in the case of a wall mount design

Order code	Description	Picture
G10	Alpha G-10 colposcope
G10UNI	Universal mounting kit for G-10 colposcope

Order assembly in the case of a examiner chair design

Order code	Description	Picture
G10	Alpha G10 colposcope

The colposcope requires a different mounting kit for each type of chair! Below we list some specific bed types for which we make a mounting system. To place the order, you need the upper part of the colposcope (G10) and the mounting kit for the specific chair type! If required, based on our free* survey, we can also equip the colposcope for additional types!

*On the territory of Hungary

Order code	Description	Picture
G10SCH	G-10 mounting kit for Schmitz examiner chairs
G1020LE	G-10 mounting kit for Lemi adapters
G10RI	G-10 mounting kit for Ritter / PROMOTAL examiner chairs
G10REX	G-10 mounting kit for REXMÖBEL / Quirumed examiner chairs
