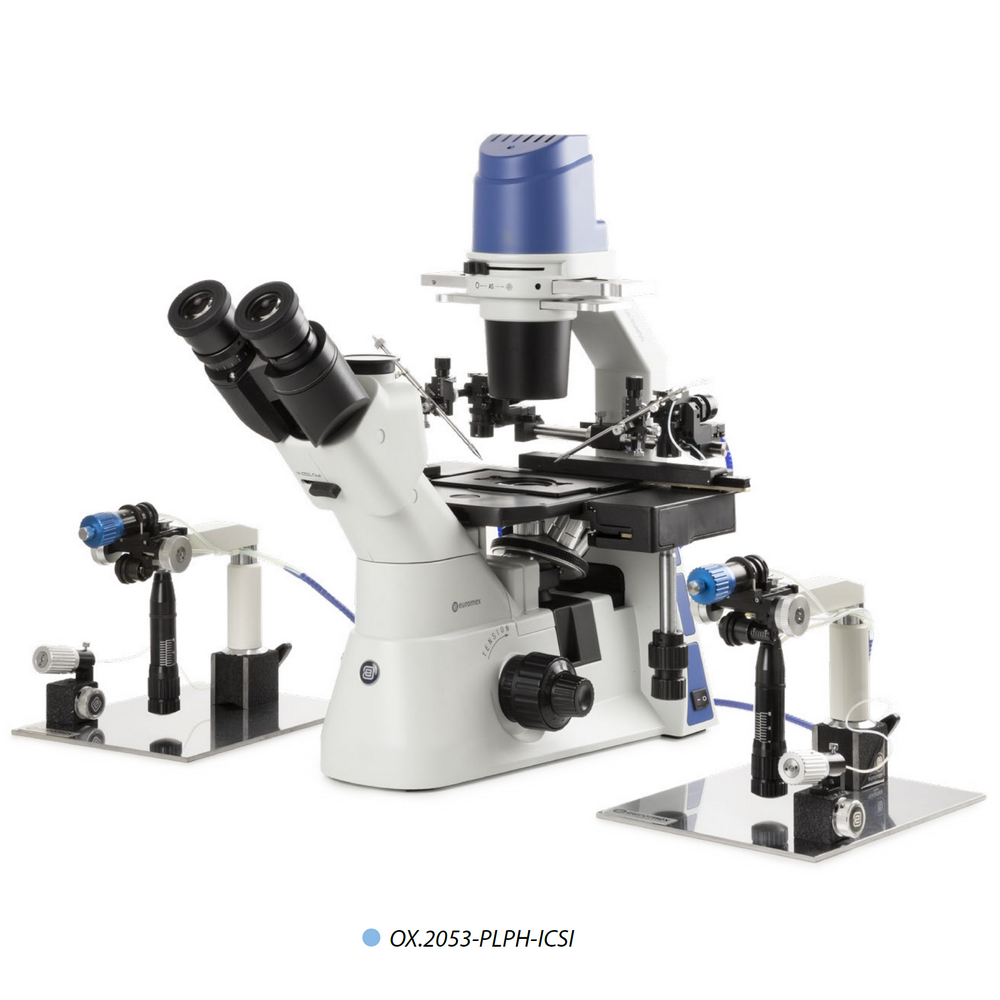

Head:

  • trinocular head, 45° inclined, 2 positions (80-20%, or 100-0%)
  • Optical system: corrected infinitely

Eyepieces:

  • WF 10x/20 mm, can be used with glasses
  • Diopter adjustment: +/-5D, on right eyepiece
  • Eyedistance adjustment: 54mm – 75mm

Objectives:

  • Objective revolver head: Inverted, 5-Way
  • Plan PH LWD IOS 10x/0.25 WD=7.94 mm
  • Plan PH LWD IOS 20x/0.40 WD=7.66 mm
  • Plan PH LWD IOS 40x/0.60 WD=3.71 mm, 1.2mm-es cover olate correction
  • Magnifying with WF10x / 22mm eyepieces:100x, 200x, 400x

Focus system:

  • Coaxial coarse and fine focusing adjustment
  • Total travel approximately 23 mm
  • Stepping: 0.002mm, with focus stop mechanism

Stage:

  • Size: 250 x 230 mm
  • The stage’s movement range: 120 x 78mm

Accessories:

  • 35 mm metal circular stage insert
  • 76 x 26 mm slide holder
  • Different sizes of glass cup holders

Condenser:

  • Long working distance (72 mm), NA: 0.3, centered, with aperture blend, phase ring slider, centerable rings

Illumination:

  • incident and transmitted 5W LED reflector, with built-in power supply 100-240v

Accessories in the package:

  • Assistant microscope
  • Blue and matt filters (45 mm)
  • Green Interference Filter (550nm)
  • Dust cover
  • User manual
  • Network cable

Product information:

  • Size: 488mm x 231mm x 555mm
  • Weight: 9 Kg

TECHNICAL SPECIFICATIONS:

  • Large movement range
  • Easy micropipette position at each time ‘Manual Home Position’
  • Adjustable micropipette holder angle between 20° and 40°
  • Micropipette holder fixing knob reduces vibration and easy handling of the sperm
  • 3D Hydraulic Manipulation Joysticks for smooth movement
  • Pneumatic Air Injector
  • Same sensitive injectors on both sides and interchangeable if needed
  • Movement Range: X/Y/Z: 20 mm each, 1 mm for one complete turn of the handle

ICS SET:

  • 2 pcs of 3D hydraulic joystick

  • 2 pcs of pipette setup mechanism

  • 2 pcs of metal plate for injectorsRögzítő rendszer
  • 1 set of allen rench
  • 1 set of spare silicone for pen type pipette holder
  • Carry case

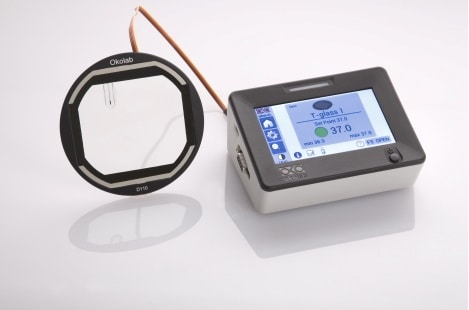

OPTIONAL HEATINGING STAGE

  • Warm ITO glass plate for Euromex stages with 110mm circular opening – Flat – 110 mm diameter
  • This ito glass plate fits in the circular opening of the X-Y stage and creates a flat temperature controlled surface at the same height as the rest of the X-Y stage.
  • Aluminium frame for superior resistance and flatness.
  • Glass thickness 0.5 mm. Plate diameter 110 mm.

Notes: This plate does not change the focal plane. Flat. Glass thickness: 0.5 mm

Controller

  • 2-Channel Temperature Controller with touch screen interface
  • One controller can control independently up to two items
  • External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature
  • On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms
  • The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers
