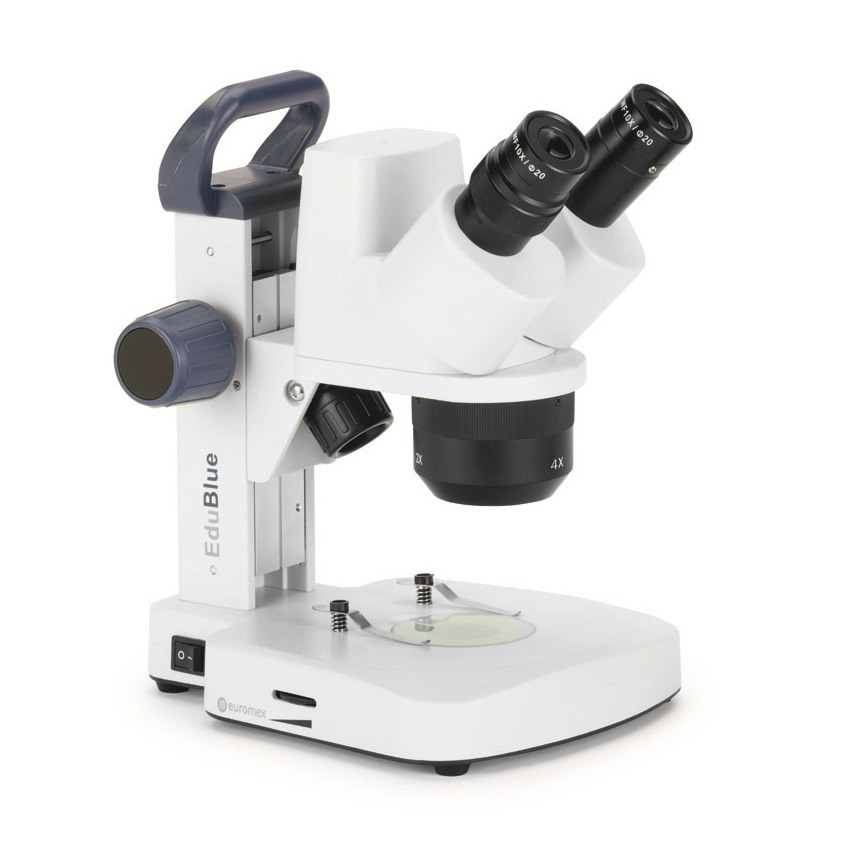

Digital stereo microscope with LED stand
- Head: binocular, 45° inclined, 360° rotatable
- Built-in 3.2 Mpixel USB camera
- Eyepieces: WF 10x/20mm
- Diopter adjust: ±5D on the left side
- Pupillary distance: between 55-75 mm
- Objective: 1x, 2x, 4x
- Total magnification: 10x, 20x and 40x
- Focusing system: coaxial corase, with tension adjust
- Field of view: 20mm,10mm, 5mm
- Working distance: 60 mm
- Illumination: incident and transmitted adjustable LED
- Both illumination intensities can be adjusted separately
- Built-in rechargeable battery 1800mAh
- Accessories: install CD, USB cable, user manual, clips
- Size: (h) 258 mm, (w): 175 mm, (d) 220 mm
- Weight: 2.4 Kg
The Image Focus 4 software features:
– Save images selectable resolution
– Supported image files: bmp, tif, jpeg, RAW
– Making Video recordings
– Setting options:
– Files saved location
– Enter the name of a file series
– Auto / Manual White Balance Setting
– Gain (digital gain) Set
– Gamma, Contrast and Saturation Setting
– Adjust Color Temperature
– Noise-canceling function
– Digital intensifier feature
– Monochromatic fluorescent coloring pictures
– Save more user parameters
– Subsequent amendments Pictures
– HDR
Measuring toolbar:
– Distance, perimeter, area, circle, irregular line
– Orthogonal adjustment, the parallel statement
– Taking Center point circle
– Two- and three-point circle uptake
– Angular measurements, marking points
– Insert a Text Box
