Inspection Microscope for ear, nose and throat specialist

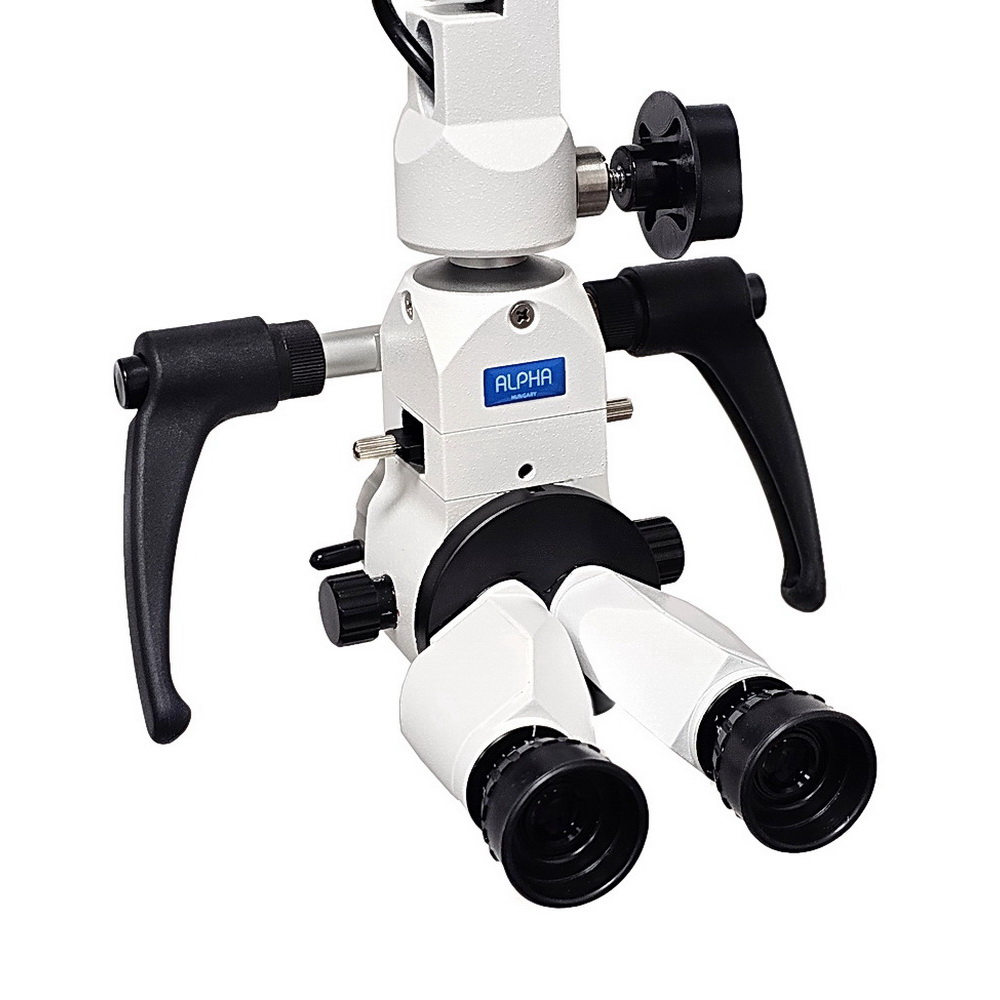

  • Head: binocular, straight
  • Eyepieces: 12x eyepiece with diopter adjustment +/-5D
  • Pupillary distance: 52-78mm
  • Focal Length of objectives: f:200mm, f:300mm
  • Magnification changer: 3-step
  • Total magnification with f: 200mm objective: 4.7x, 7.5x, 12x
  • Field of view: 40 mm, 25 mm, 16 mm
  • Total magnification with f: 300mm objective: 3x,5x, 8x
  • Field of view: 61 mm, 38 mm, 24 mm
  • Fine Focus Focus range: 10mm
  • Illumination: coaxial illumination with could light source, adjustable brightness
  • Power supply: 10W LED lamp
  • Filters: built-in yellow and green filters
  • The arm can be moved up and down by loosening the hand wheel. After the arm adjusted to the proper position, screw down the hand wheel to keep the microscope stable.

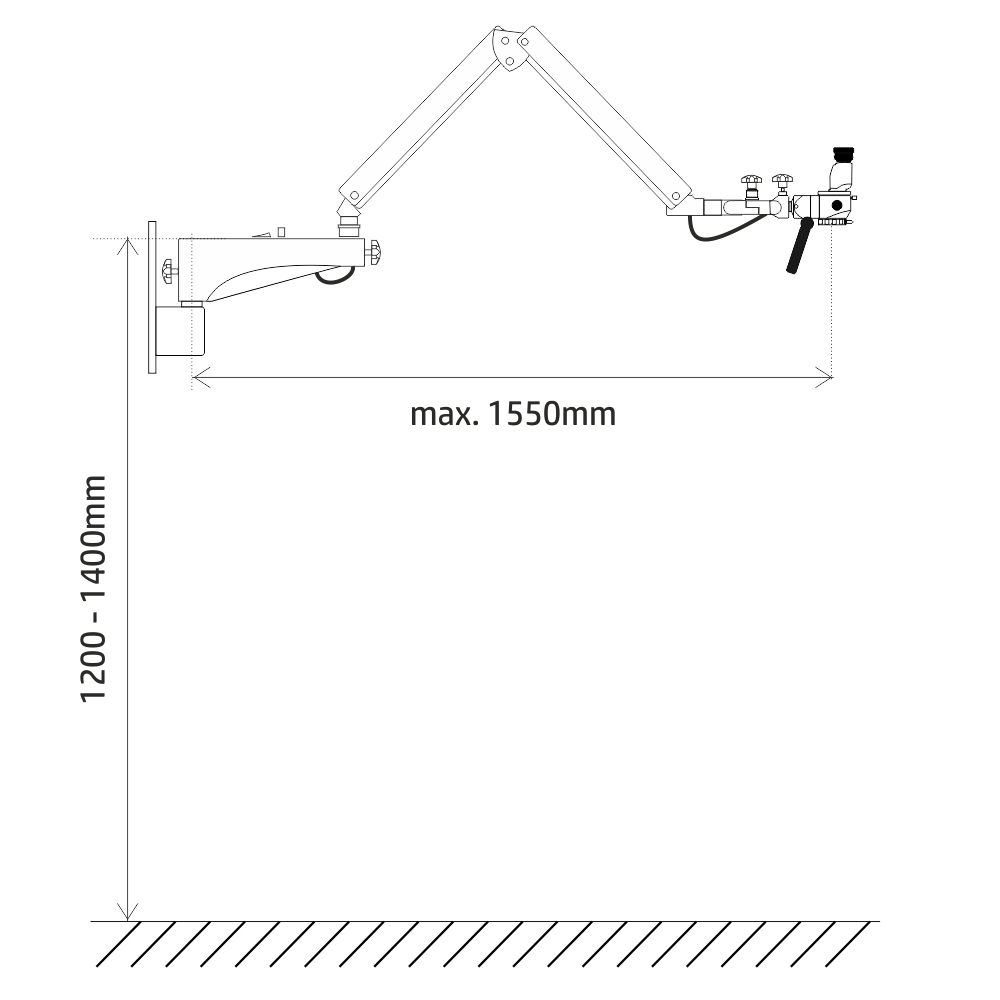

  • Travel range: from the floor to the height adjustment 700-1700 mm
  • Max. overhang from the column: 1550 mm

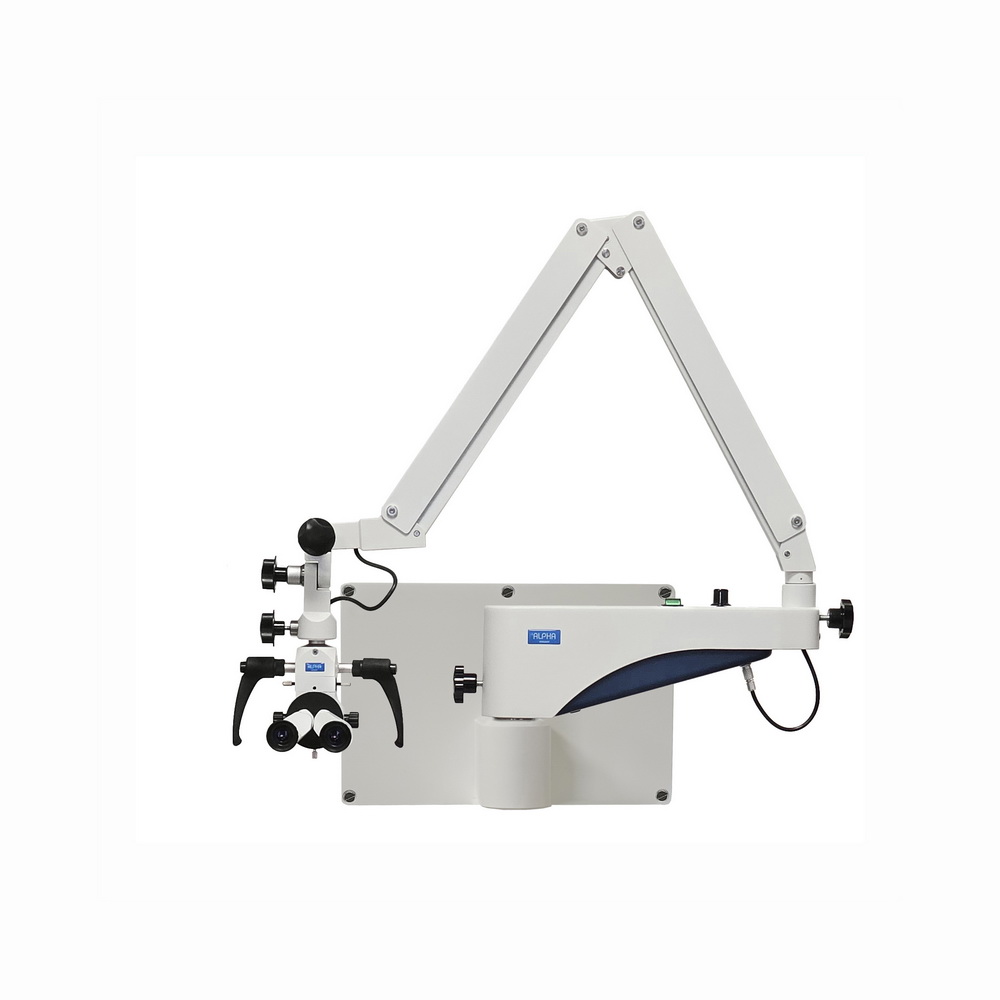

Wall mount adapter
(Note! The microscope can be mounted only concrete or brick-wall!)
Recommended height: 1200mm-1400mm

Accessories: power cable, spare bulb, adjusting screw
